10T single stage reverse osmosis (RO) water treatment equipment
Pretreatment system
Multi-media filter: Removes suspended solids, sediment, colloids, rust and other particles, and reduces turbidity and SDI values.
Activated carbon filter: Adsorbs residual chlorine, organic matter, odor, color and some heavy metals. Residual chlorine will irreversibly oxidize and damage the RO membrane.
Softener (optional but always available) : If the hardness of the influent water is relatively high (with a high content of calcium and magnesium ions), the softener removes hardness ions through ion exchange to prevent scaling on the RO membrane surface (such as calcium carbonate, calcium sulfate, etc.). For a system of 10 tons per hour, it is usually required.
Security filter: Installed before the RO main unit, it is usually a 5-micron precision filter element, serving as the last line of defense to ensure that the water entering the RO membrane does not contain any particles that could scratch or clog the membrane.
Dosing system (optional) : It may include scale inhibitor dosing (to prevent inorganic salt scaling), non-oxidizing biocide dosing (to control microbial growth), and reducing agent dosing (if the pretreatment cannot completely remove residual chlorine).
Parameter Table
| Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
| YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
| YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
| YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
| YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
| YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
| YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
| YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.
5.How can I pay you?
After we confirmed order, I will send you sales contract with our company bank information. You can transfer money to our company bank account by T/T. Or you can pay via Western Union with credit card, Smartcard or Visa Card.Or do L/C if it is accepted by both of us .
If you still don't know how to pay, just call me at+86 18203685329(whatsapp no.)
|
|

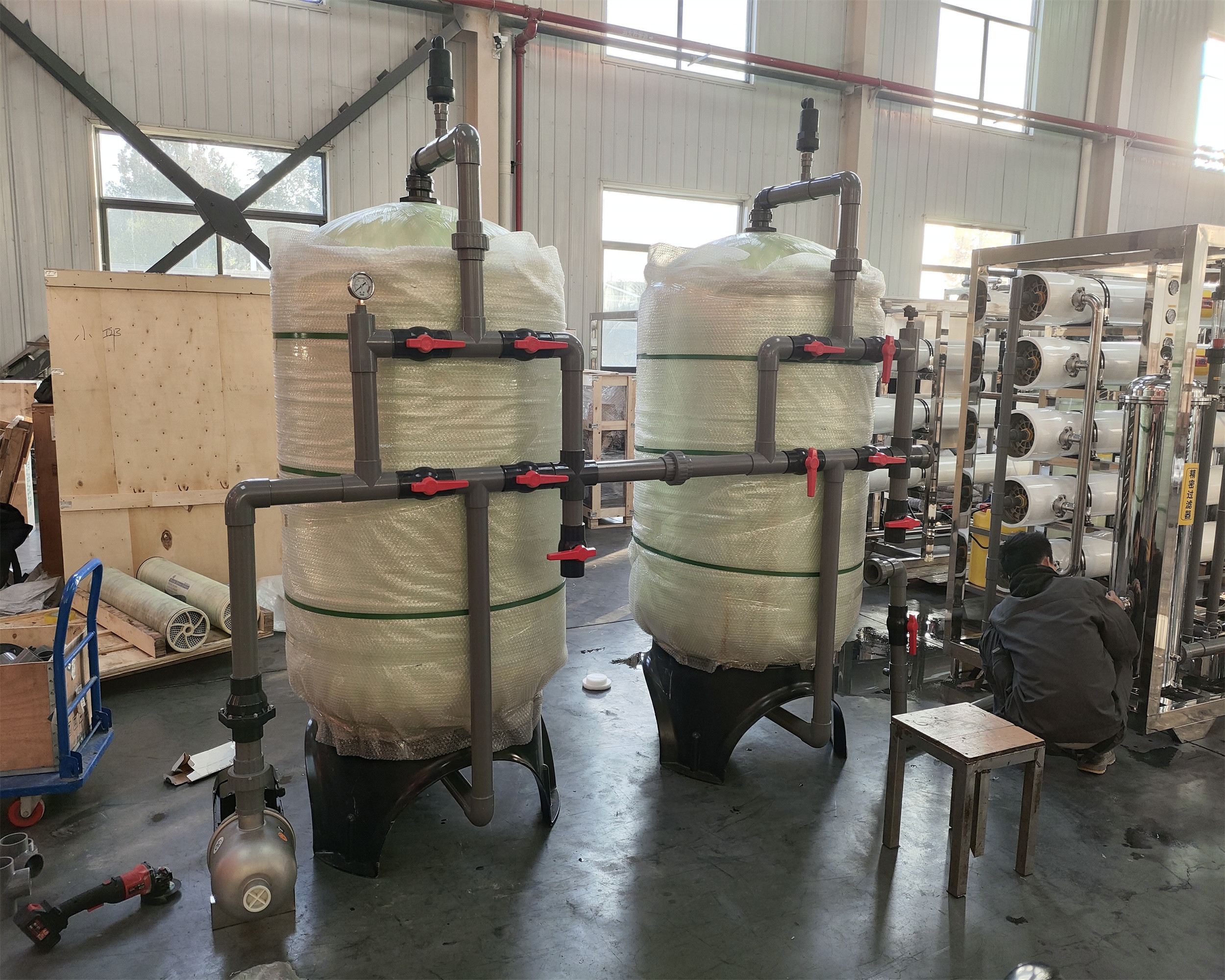

A large-scale industrial multi-stage water treatment water quality filtration equipment with a capacity of 10 tons per hour Images
|
